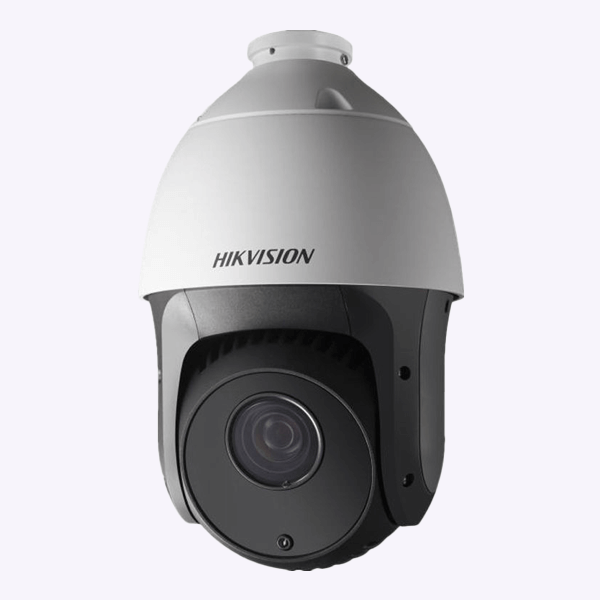

2MP 20X Network IR PTZ Camera Speed Dome – DS-2DE5220IW-AE
د.م. 0,00
• 1/2.8″ Progressive Scan CMOS
• 1920 x 1080
• 20X Optical Zoom
• DWDR
• 3D intelligent positioning function
• Support Hik cloud P2P
• Up to 150m IR distanceg
• Hi-PoE / 24VAC power supply
Description
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Effective Pixels: | | | 1920(H)x1080(V) |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | DWDR |
| Shutter Time: | | | 1-1/10,000s |
| Digital Zoom: | | | 16X |
| Privacy Masking: | | | 8 privacy masks programmable |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Lens | ||
|---|---|---|
| Focal Length: | | | 4.7-94.0mm, 20x |
| Zoom Speed: | | | Approx.3s(Optical Wide~Tele) |
| Angle of View: | | | 58.3-3.2 degree (Wide~Tele) |
| Minimum Working Distance: | | | 10~1,000mm(Wide~Tele) |
| Aperture Range: | | | F1.6~F3.5 |
| Pan & Tilt | ||
| Pan Range: | | | 360° continuous |
| Pan Speed: | | | Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s |
| Tilt Range: | | | -15°-90° (Auto Flip ) |
| Tilt Speed: | | | Tilt Manual Speed: 0.1°~200°/s, Tilt Preset Speed: 200°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Infrared | ||
| IR irradiation distance: | | | 150m |
| IR irradiation angle: | | | Adjustable by zoom |
| Alarm | ||
| Alarm Input: | | | 2 |
| Alarm Output: | | | 1 |
| Alarm Actions: | | | Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage |
| Input & Output | ||
| Monitor Output: | | | 1.0Vp-p, 75 Ohm, BNC |
| Audio Input: | | | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
| Audio Output: | | | 1 Audio output interface Line level, impedance: 600Ω |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 1920×1080 |
| Main Stream: | | | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
| Sub Stream: | | | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) |
| Third Stream: | | | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240) |
| Video Compression: | | | H.264 / MJPEG |
| ROI encoding: | | | Support 4 areas with adjustable levels |
| Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| No. of Simultaneous Users: | | | Up to 20 users |
| Dual Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
| Hik-Connect: | | | Support |
| Client GUI | ||
| Camera Control: | | | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date & Time Display: | | | Time: Week: Date, 6 formats on the Client |
| Client: | | | Support iVMS-4200 |
| Web Browser: | | | IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 + |
| General | ||
| Menu Language: | | | English |
| Power Supply: | | | 24 VAC & Hi-PoE |
| Power Consumption: | | | Max.32W |
| Working Temperature/Humidity: | | | -30°C ~ 65°C (-22°F ~ 149°F) |
| Protection Level: | | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting: | | | Various mounting modes optional |
| Dimensions: | | | Φ185(mm)×330(mm) |
| Weight (approx.): | | | 4kg (8.81lbs) |
| Mount Option: | | | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
