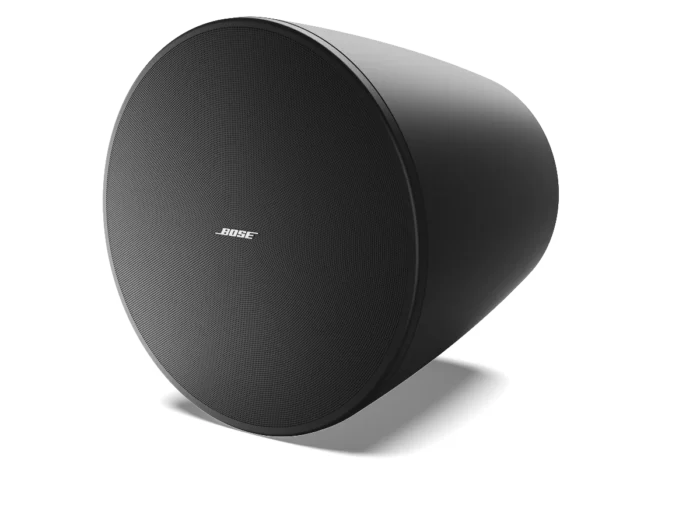

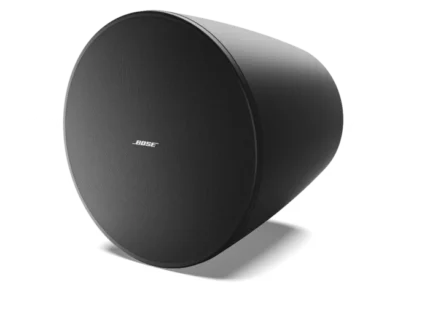

DesignMax DM10P-SUB subwoofer

د.م. 0,00

Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

Catégorie :
Description

Description

Offrant de riches performances bas de gamme, les subwoofers DesignMax apportent des basses instantanément impressionnantes à toute installation sonore commerciale. Le Bose Professional DM10P-SUB de 300 watts est un caisson de basses suspendu de 10 pouces avec une plage de fréquences de 40 à 125 Hz et dispose d’un système de suspension monopoint encastré pour une apparence élégante et attrayante et est disponible en noir ou blanc.

CARACTÉRISTIQUES

  • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
  • Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
  • Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

SPÉCIFICATIONS TECHNIQUES

COMPLIANCE
  • Safety Agency Ratings : UL-1480A, S5591/UL Listed, NFPA70 & NFPA90-A, CE compliant, UL 2239 for suspension cable
PHYSICAL
  • Colors : Black (similar to RAL 9005), white (similar to RAL 9003), paintable
  • Enclosure Material : Engineered plastics
  • Environmental Testing : Indoor only
  • Grille Material : Perforated steel, powder-coated finish
  • Logo : Rotatable, removable
  • Mounting/Rigging Provisions : 1 suspension attachment point, 1 safety cable attachment point
  • Net Weight : 19.7 lb (8.9 kg)
  • Operating Temperature : 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (H×W×D) : 15.7 in × 15.1 in (400 mm × 383 mm), loudspeaker diameter × depth
  • Shipping Weight : 27.9 lb (12.7 kg)
PERFORMANCE
  • Frequency Range (-10 dB): 40 Hz – 125 Hz
  • Coverage, Horizontal : Omnidirectional below 200 Hz
  • Maximum SPL at 1 m : 110 dB
  • Nominal Impedance : 8 Ω (transformer bypass)
  • Power Handling, Continuous : 250 W
  • Power Handling, Peak : 1000 W
  • Recommended Signal Processing : Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m) : 85 dB
  • Transformer Taps, 100V : 40, 80, 150 W, bypass
  • Transformer Taps, 70V : 20 W, 40 W, 80 W, 150 W, bypass
  • Coverage, Vertical : Omnidirectional below 200 Hz
TRANSDUCERS
  • Crossover Frequency : 80 Hz – 200 Hz via active crossover in DSP
  • Driver Protection : Recommended high-pass protection 45 Hz with recommended 24 dB/octave filter
  • Low-Frequency Transducer Quantity and Size : 1 × 10 in (254 mm) woofer

    PRODUCT CODES

    • 835265-0110 : DESIGNMAX DM10P-SUB SINGLE BLACK
    • 835265-0210 : DESIGNMAX DM10P-SUB SINGLE WHITE

    INCLUDED IN PACKAGING

    • (1) cable fastener
    • (1) cable fastener tool
    • (1) DesignMax DM10P-SUB subwoofer
    • (1) installation guide
    • (1) suspension cable, 15.0 ft (4.5 m)
    • (4) cable ties
