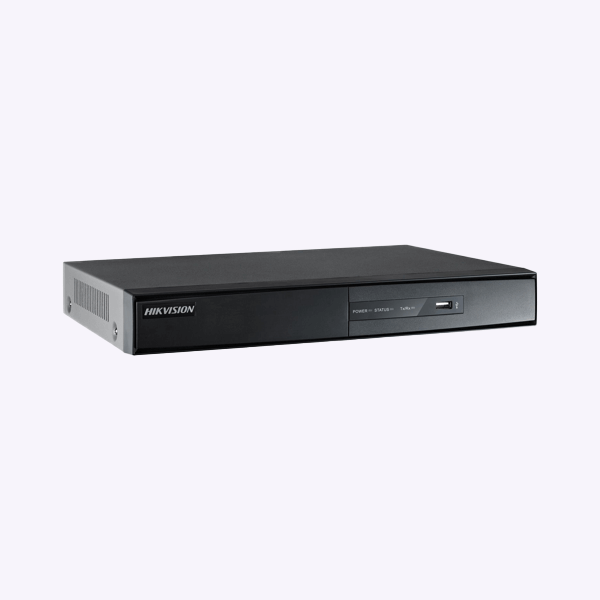

DVR Turbo HD 3.0 , 720P/1080P, 16 Turbo HD/Analog interfaces – DS-7216HQHI-F2/N
د.م. 0,00
16 Channel Camera
CVBS sortie & simultané HDMI & VGA sortie at jusqu’à 1920 x 1080P resolution
H.264+ compression.
12.5fps enregistrement sur 1080P
Connectable aux caméras HD-TVI, AHD, réseau et analogiques.
2 Caméras IP
| Entrée Audio/Vidéo | ||
|---|---|---|
| Entrée Audio: | | | 1-ch |
| Entrée vidéo analogique et HD-TVI: | | | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Types de caméra pris en charge: | | | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for the first channel of DS-7204HQHI-F1/N, the first 2 channels of DS-7208HQHI-F1/N, and the first 4 channels of DS-7216HQHI-F1/N. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
| Audio Compression: | | | G.711 |
| Sortie Audio/Vidéo | ||
| Sortie CVBS: | | | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 |
| Cadence des images: | | | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Double flux: | | | Support |
| Lecture synchrone: | | | 16-ch |
| Gestion de réseau | ||
| Connexions à distance: | | | 128 |
| Protocoles réseau: | | | TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Pilote disque dur | ||
| Interface externe | ||
| Général | ||
| Alimentation: | | | 12V DC |
| Consommation: | | | ≤ 30W(without hard disks) |
| Températures de fonctionnement: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Hygrométrie de fonctionnement: | | | 10% ~ 90% |
| Châssis: | | | Standalone 1U chassis |
| Dimensions: | | | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Poids: | | | ≤2 kg(4.4lb) |
