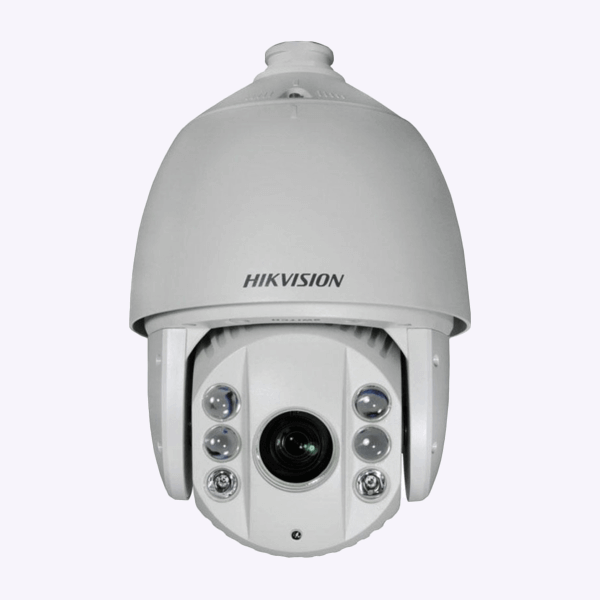

5MP 30× IR Network Camera Speed Dome – DS-2DE7530IW-AE
د.م. 0,00
1/1.9″ progressive scan CMOS
Up to 2592×1944 resolutio
30× Optical Zoom, 16× Digital Zoom
IR distance up to 150 m
24 VAC & Hi-PoE
Description
| Image Sensor: | | | 1/1.9″ progressive scan CMOS |
| Effective Pixels: | | | 2592 × 1944 |
| Signal System: | | | PAL/NTSC |
| Minimum Illumination: | | | Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.002 Lux @(F1.5, AGC ON) 0 Lux with IR |
| White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC: | | | Auto/Manual |
| BLC: | | | ON/OFF |
| HLC: | | | Support |
| Smart defog: | | | Support |
| WDR: | | | DWDR |
| Shutter Time: | | | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16× |
| Privacy Masking: | | | 8 privacy masks programmable |
| Auto Focus: | | | Auto / Semi-automatic / Manual |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | | | 360° continuous |
| Pan Speed: | | | Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s |
| Tilt Range: | | | -15°-90° (Auto Flip ) |
| Tilt Speed: | | | Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s |
| Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets for each patrol |
| Pattern: | | | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery: | | | Support |
| Park Action: | | | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | | | ON/OFF |
| Infrared | ||
| IR irradiation distance: | | | 150m |
| IR irradiation angle: | | | Adjustable by zoom |
| Alarm | ||
| Alarm Input: | | | 2 |
| Alarm Output: | | | 1 |
| Input & Output | ||
| Audio Input: | | | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output: | | | 1 channel audio output, linear level |
| Network | ||
| Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution: | | | 2592 × 1944 |
| Main Stream: | | | 50Hz: 25fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream: | | | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) |
| Third Stream: | | | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240) |
| Video Compression: | | | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| ROI encoding: | | | Support 4 areas with adjustable levels |
| Audio Compression: | | | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users: | | | Up to 20 users |
| Three-Stream: | | | Support |
| Mini SD Card: | | | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| Hik-Connect: | | | Support |
| General | ||
| Power Supply: | | | 24 VAC & Hi-PoE |
| Power Consumption: | | | Max.: 40 W IR: 19 W |
| Working Temperature/Humidity: | | | Outdoor: -30°C to 65°C (-22°F to 149°F) ≤ 90% |
| Protection Level: | | | TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions: | | | Φ 220 mm × 353.4 mm (Φ 8.66″ × 13.91″) |
| Weight (approx.): | | | Approx. 4.5 kg (9.92 lb) |
